Trailer Spindle R40642 2" X 11"
Trailer Spindle Size Chart R40642 2" X 11"
Trailer Spindle Replacement R40642 2" X 11"
Axle Spindle R40642 2" X 11"

Trailer Axle Spindle R40642 2" X 11" Spindle for 5200 lb Axles (4497196)

$33.00
$33.00
Shipping calculated at checkout.
Quantity must be 1 or more

Replacement for many 5,200 Pound axles including Dexter, AL-KO, and others.

Part # R40642

Fit/Compatibility:

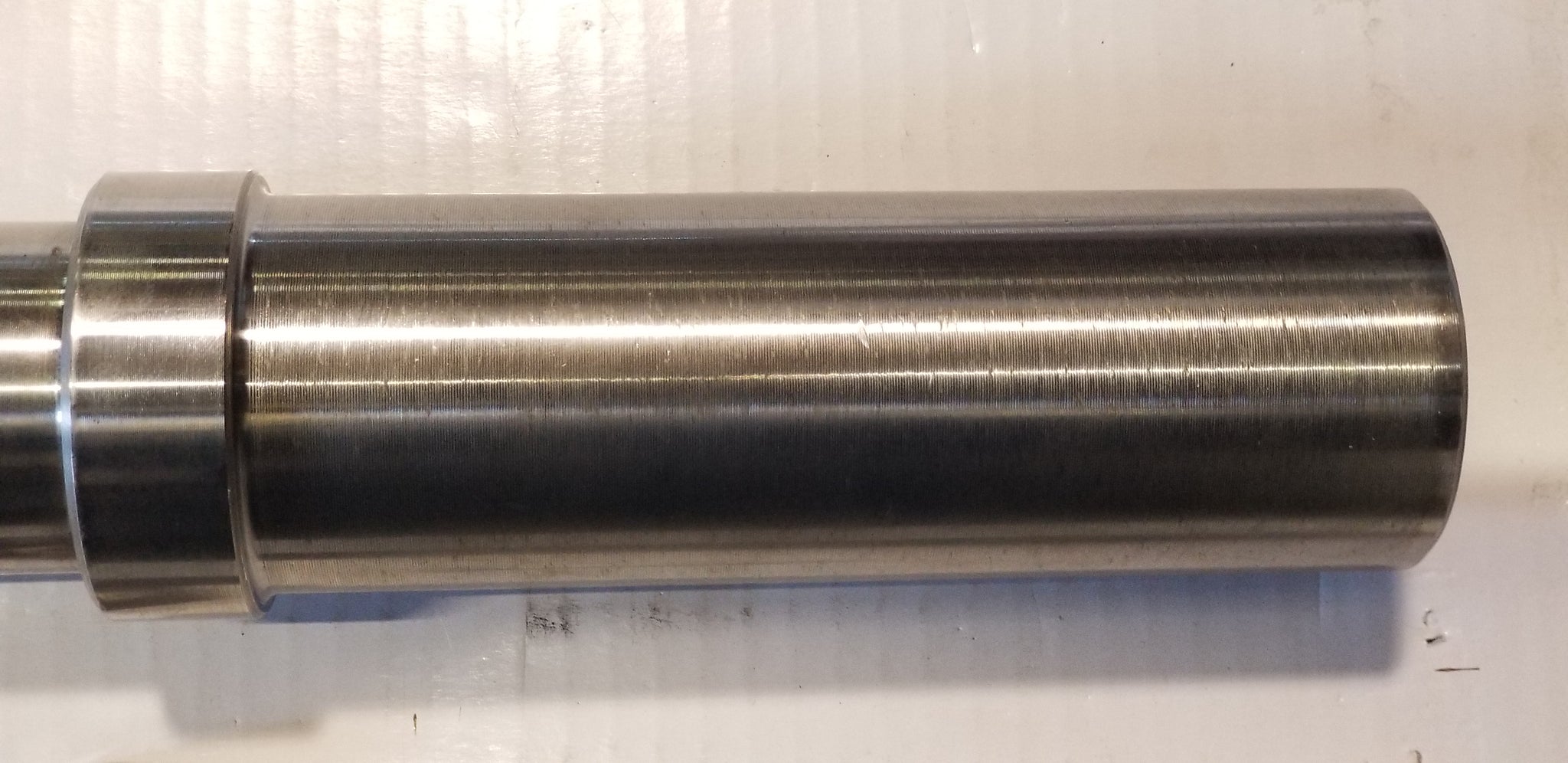

  • Shank turned to 2.00" Diameter.

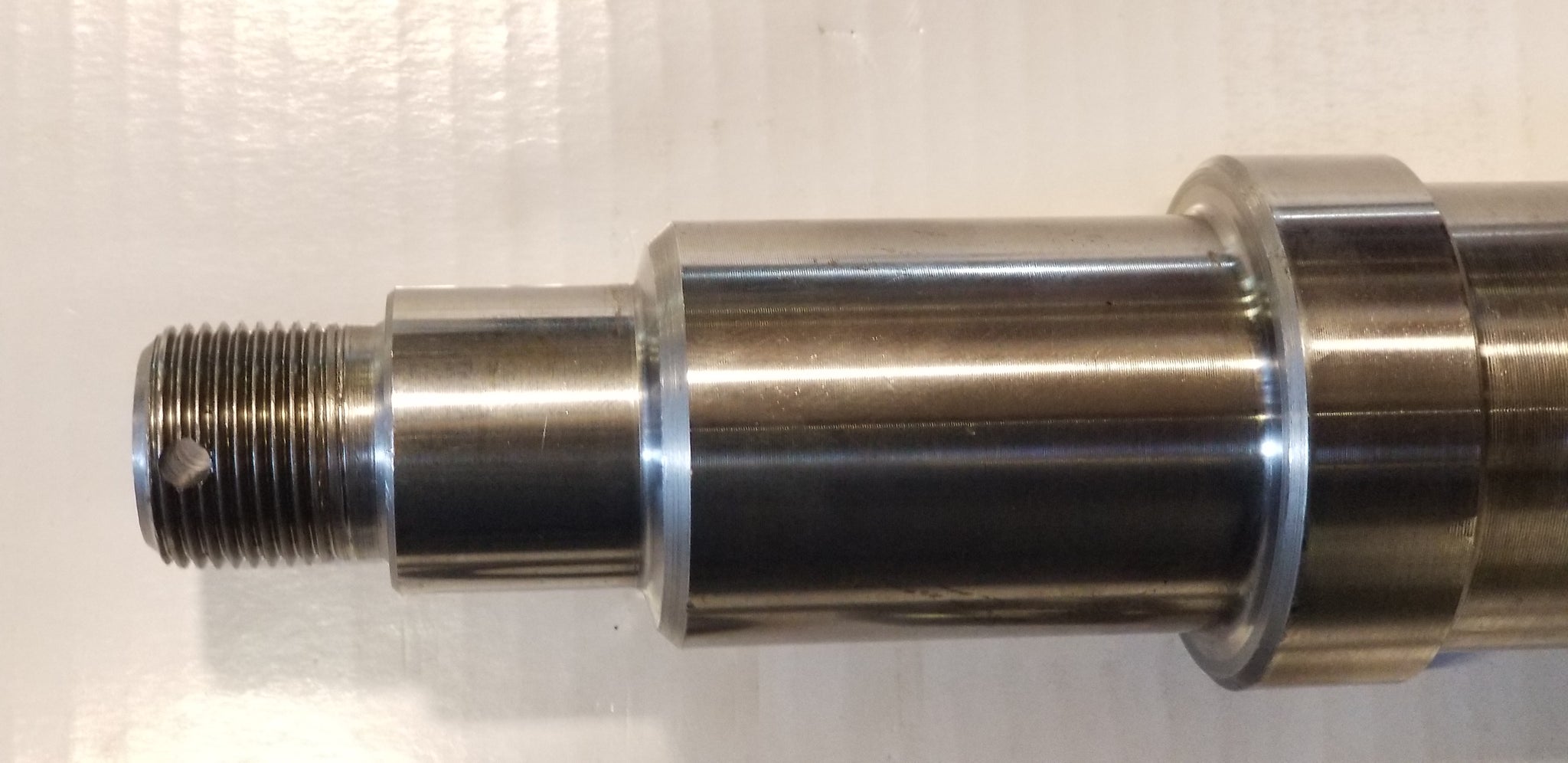

  • This spindle is standard 1" threads
  • Uses Inner bearing  = 25580
  • Uses Outer bearing = 15123
Description:
  • Straight and Round spindle
  • #42 series trailer spindle
  • Supports axles rated for up to 5,200 lb
  • Load Capacity: Up to 2,600 lb (per wheel)
Applications:
  • Commonly used in hubs with oil bath application

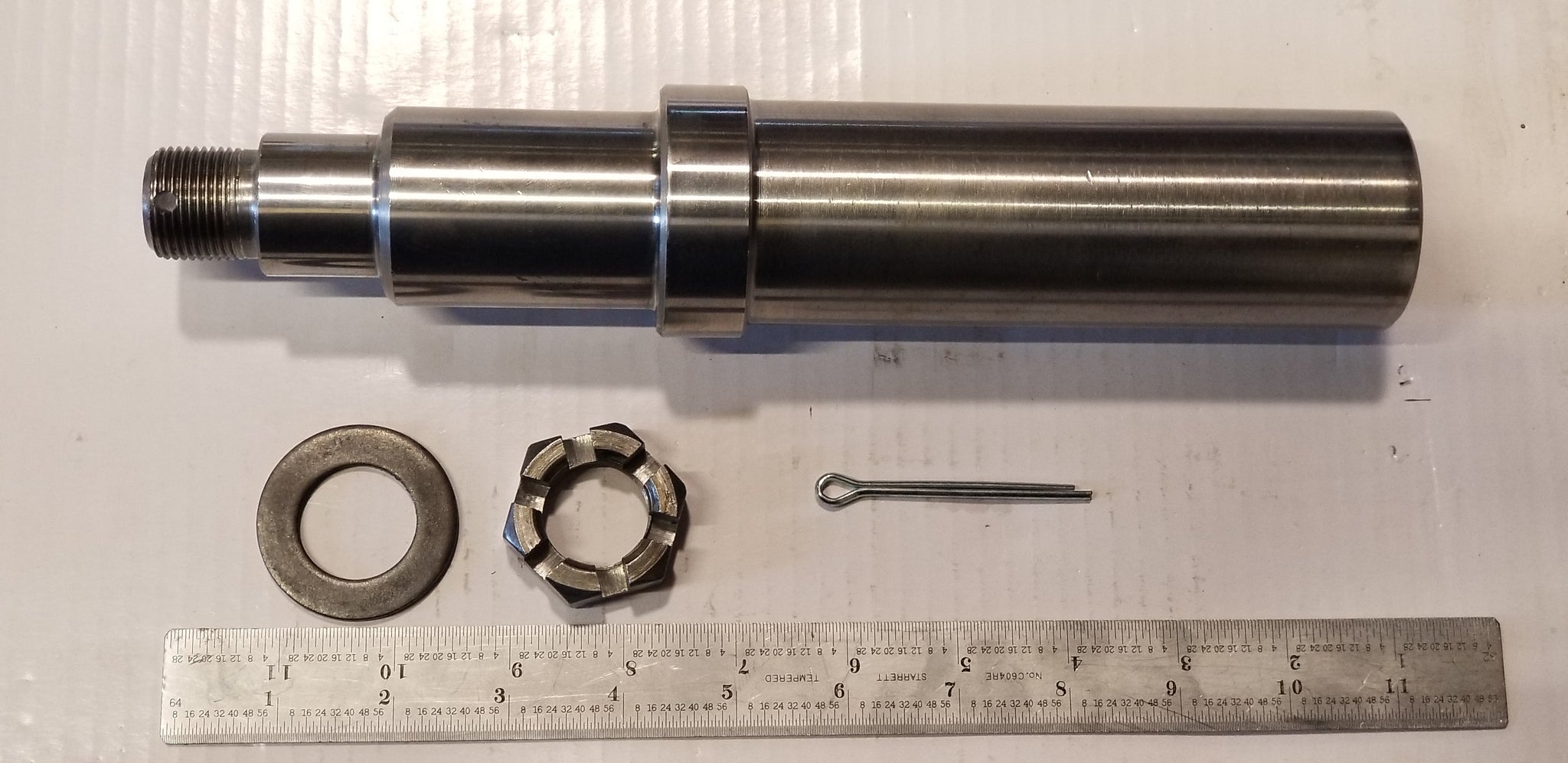

Includes:
  • Spindle (1)
  • Castle Nut (1)
  • Washer (1)
  • Cotter Pin(1)
Spindle Measurements (see spindle size chart):
  • (A)Shank Diameter: 2.00 in
  • (B)Seal Diameter: 2.24 in
  • (C)Inner Bearing Diameter: 1.75 in
  • (D)Outer Bearing Diameter: 1.25 in
  • (E)Thread Diameter: 1.00 in
  • (F)Overall Length: 11.00 in

Spindle Weight: 10.0 lbs

This part has been fully inspected and is being sold individually as is in brand-new condition.

Includes 1 Year Manufacturer Warranty

Made in the USA

*All Top Quality Spindles are engineered to exceed axle and trailer load capacity ensuring confidence in your purchase and safety.
