Replacement for many 3500 Pound axles, including Dexter, AL-KO, and others.
Part # R20484
Fit/Compatibility:
- This spindle is standard 1" threads
- Inner bearing # LM48548
- Outer bearing # L44649
Description:
- Straight and Round spindle
- 1-1/2" dia shank
- #84 series trailer spindle
- Load Capacity: Up to 1,750 lb (per wheel)
Applications:
- Commonly used in hubs with oil bath applications

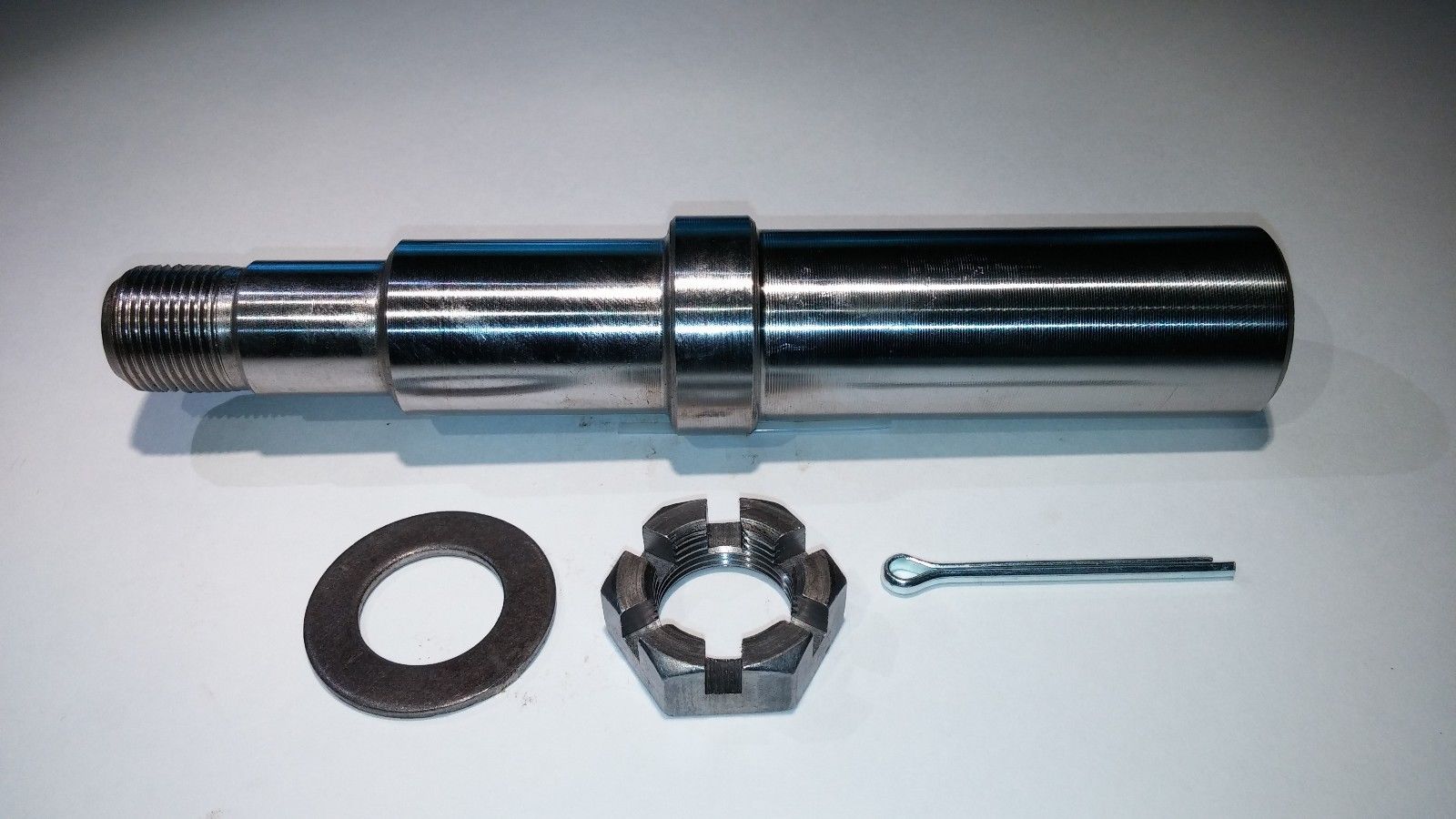

Includes:
- Trailer Axle Spindle (1)
- Castle Nut (1)
- Washer (1)
- Cotter Pin (1)
Measurements:
- (A) Shaft Diameter: 1.50 in
- (B) Seal Diameter: 1.72 in
- (C) Inner Bearing Diameter: 1.375 in
- (D) Outer Bearing Diameter: 1.06 in
- (E) Thread Diameter: 1.00 in
- (F) Overall Length: 8.75 in
This part has been fully inspected and is being sold individually as is in brand-new condition.
Includes 1 Year Manufacturer Warranty
Made in the USA
*All Top Quality Spindles are engineered to exceed axle and trailer load capacity ensuring confidence in your purchase and safety.
