Replacement for many 3500 lb axles including Dexter, AL-KO, and others.
Part # R30484
Fit/Compatibility:- This spindle is standard 1" threads
- Outer bearing # L44649
- Inner bearing # L68149
Description:

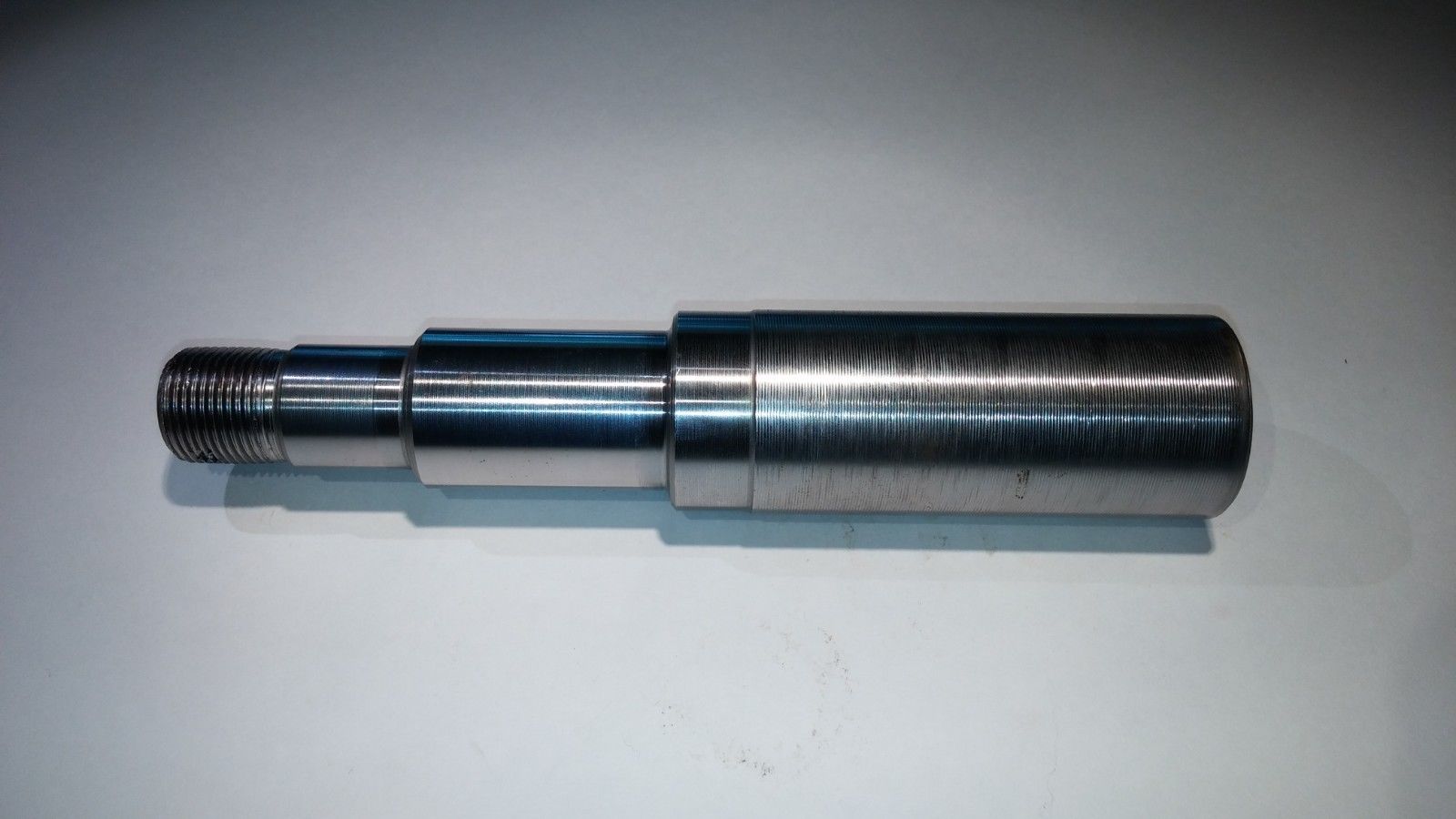

- Straight and round spindle
- #84 series trailer spindle
- Supports axles rated for up to 3,500 lb
- Load Capacity: Up to 1,750 lb (per wheel)
Applications:
Commonly used in hubs with oil bath application

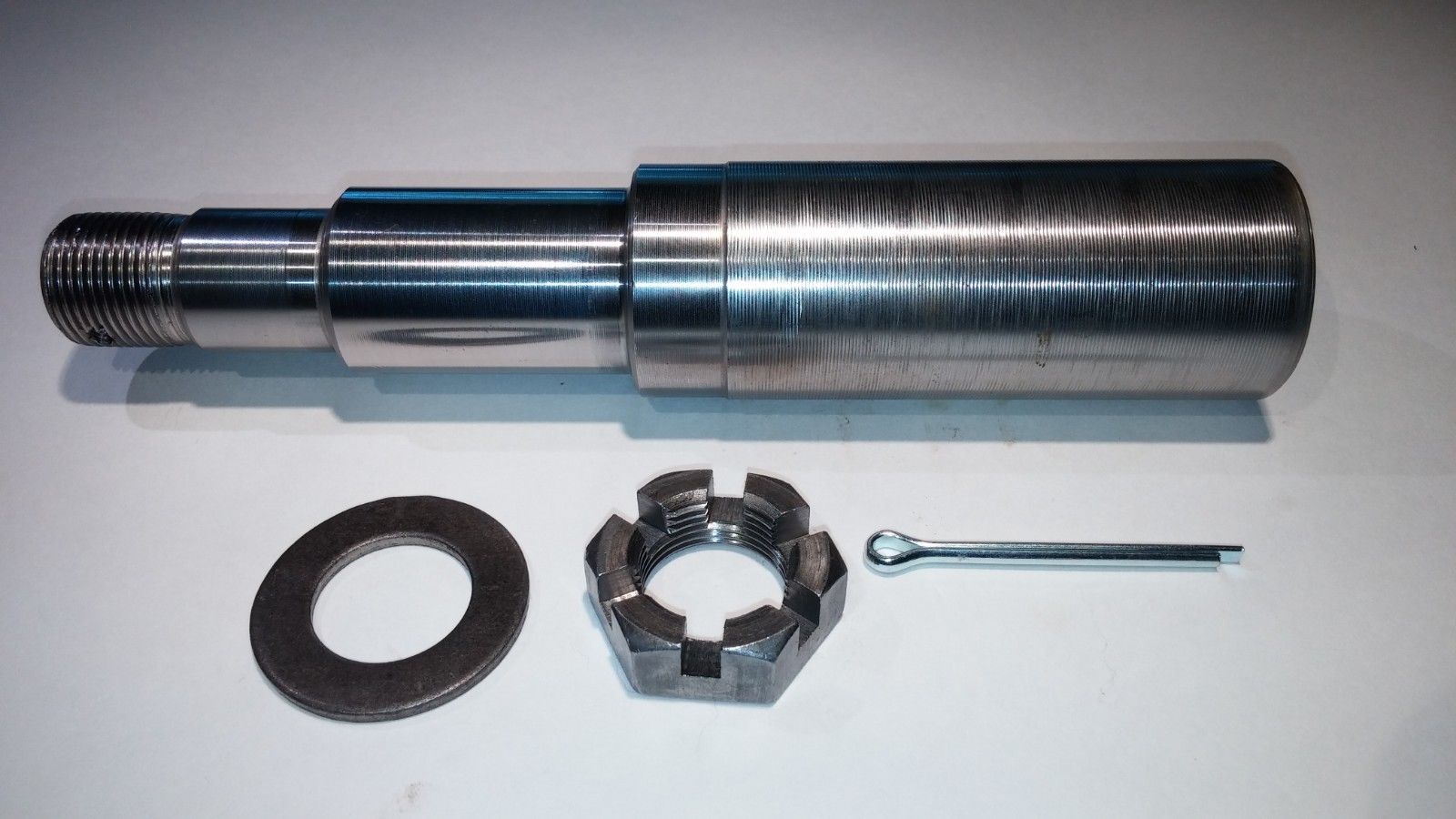

Includes:
- Trailer Axle Spindle (1)
- Castle Nut (1)
- Washer (1)
- Cotter Pin (1)
Spindle Measurements (see spindle size chart):
- (A)Shank Diameter: 1.75 in
- (B)Seal Diameter: 1.73 in
- (C)Inner Bearing Diameter: 1.38 in
- (D)Outer Bearing Diameter: 1.06 in
- (D)Thread Diameter: 1.00 in
- (F)Overall Length: 8.25 in
Spindle Weight: 4.11 lb
This part has been fully inspected and is being sold individually as is in brand-new condition.
Includes 1 Year Manufacturer Warranty
Made in the USA
*All Top Quality Spindles are engineered to exceed axle and trailer load capacity ensuring confidence in your purchase and safety.
