Replacement For Many Popular 5200, 6000, and 7000 lb Axles
Part # R50642F
Fit/Compatibility:
- This spindle is standard 1 inch threads
- Outer bearing # 14125A
- Inner bearing # 25580
Description:

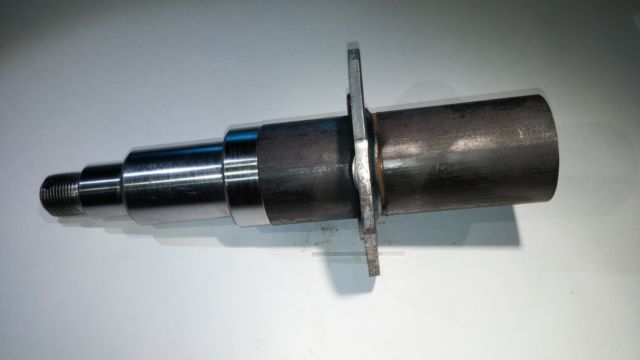

- Straight and Round Spindle
- #42 series trailer spindle
- Rounded brake flange welded on back
- Supports axles rated up to 7,000 lb
- Load Capacity: Up to 3,500 lb (per wheel)
Applications:
Commonly used in hubs with an oil bath application
Includes:
- Spindle (1)
- Castle Nut (1)
- Washer (1)
- Cotter Pin (1)
Spindle Measurements (see spindle size chart):
- (A)Shank Diameter: 2.25 in
- (B)Seal Diameter: 2.24 in
- (C)Inner Bearing Diameter: 1.74 in
- (D)Outer Bearing Diameter: 1.25 in
- (E)Thread Diameter: 1.00 in
- (F)Overall Length: 11.00 in
Spindle Weight: 10.0 lb
The part has been fully inspected and is being sold individually as is in brand-new condition.
Includes 1 Year Manufacturer Warranty
Made in the USA
*All Top Quality Spindles are engineered to exceed axle and trailer load capacity ensuring confidence in your purchase and safety.
