Trailer Spindle #42 3-1/4" x 10-9/10" w/ Brake Flange Welded For 8K lbs
Trailer Spindle Size Chart #42 3-1/4" x 10-9/10" for 8K lbs
Axle Spindle #42 3-1/4" x 10-9/10" w/ Brake Flange Welded For 8K lbs
Trailer Axle Spindle #42 3-1/4" x 10-9/10" w/ Brake Flange Welded For 8K lbs
Trailer Spindle ReplacementTrailer Axle Spindle #42 3-1/4" x 10-9/10" w/ Brake Flange Welded For 8K lbs
8000 lb Trailer Spindle
4 Hole Brake Flange Trailer Spindle Welded For 8K lbs

Trailer Axle Spindle ES-80QF #42 3 1/4" x 10.90" w/ Brake Flange(4497182)

Regular price
$55.75
Sale price
$55.75
Shipping calculated at checkout.
Quantity must be 1 or more

Replacement For Many Popular Torsion 8000 lb Axles

Part # ES-80QF

Fit/Compatibility:

  • This spindle is standard 1" threads
  • Outer bearing # 25580
  • Inner bearing # 25520

Description:

  • Straight and Round Spindle
  • #42 series trailer spindle

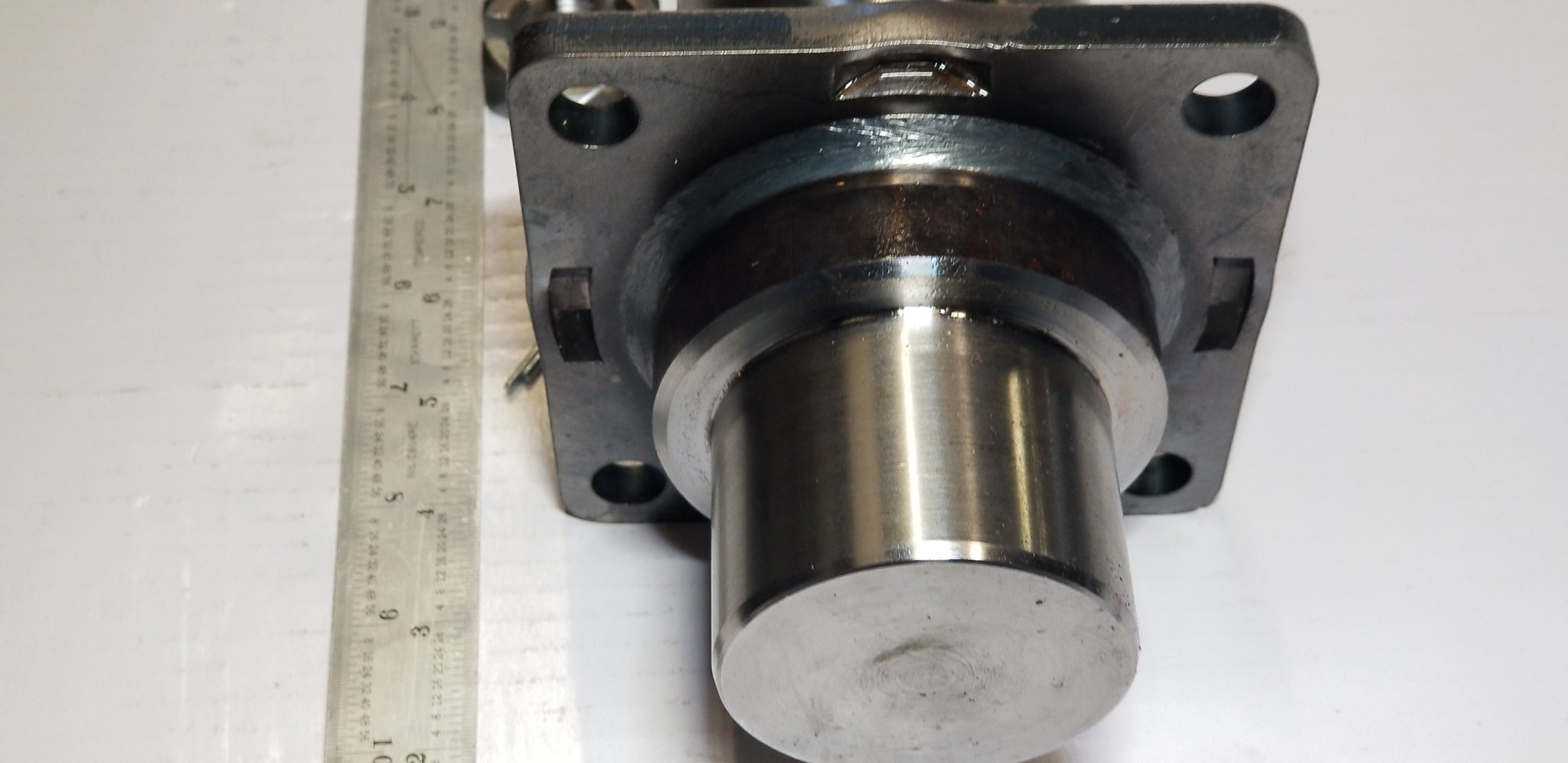

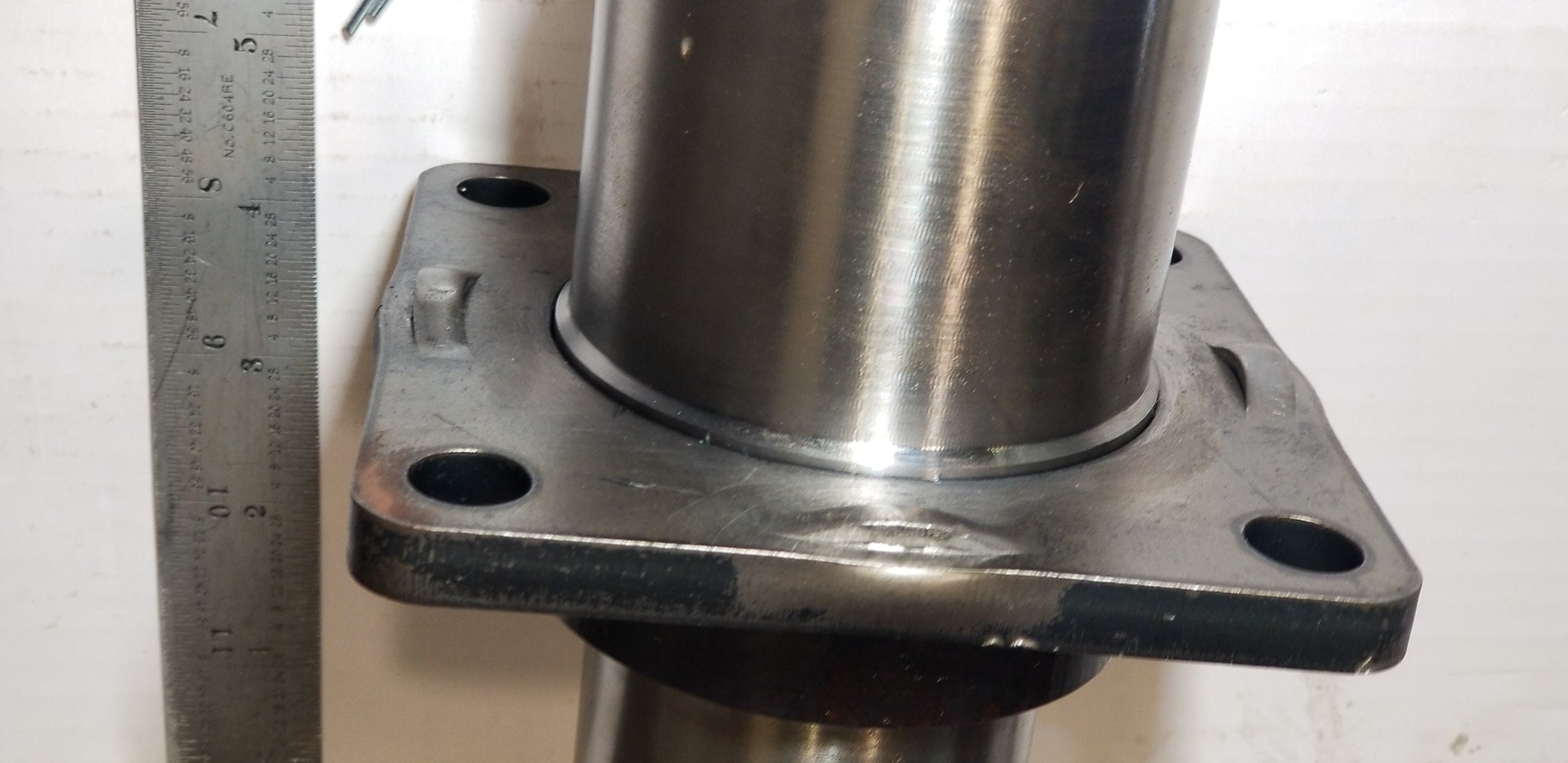

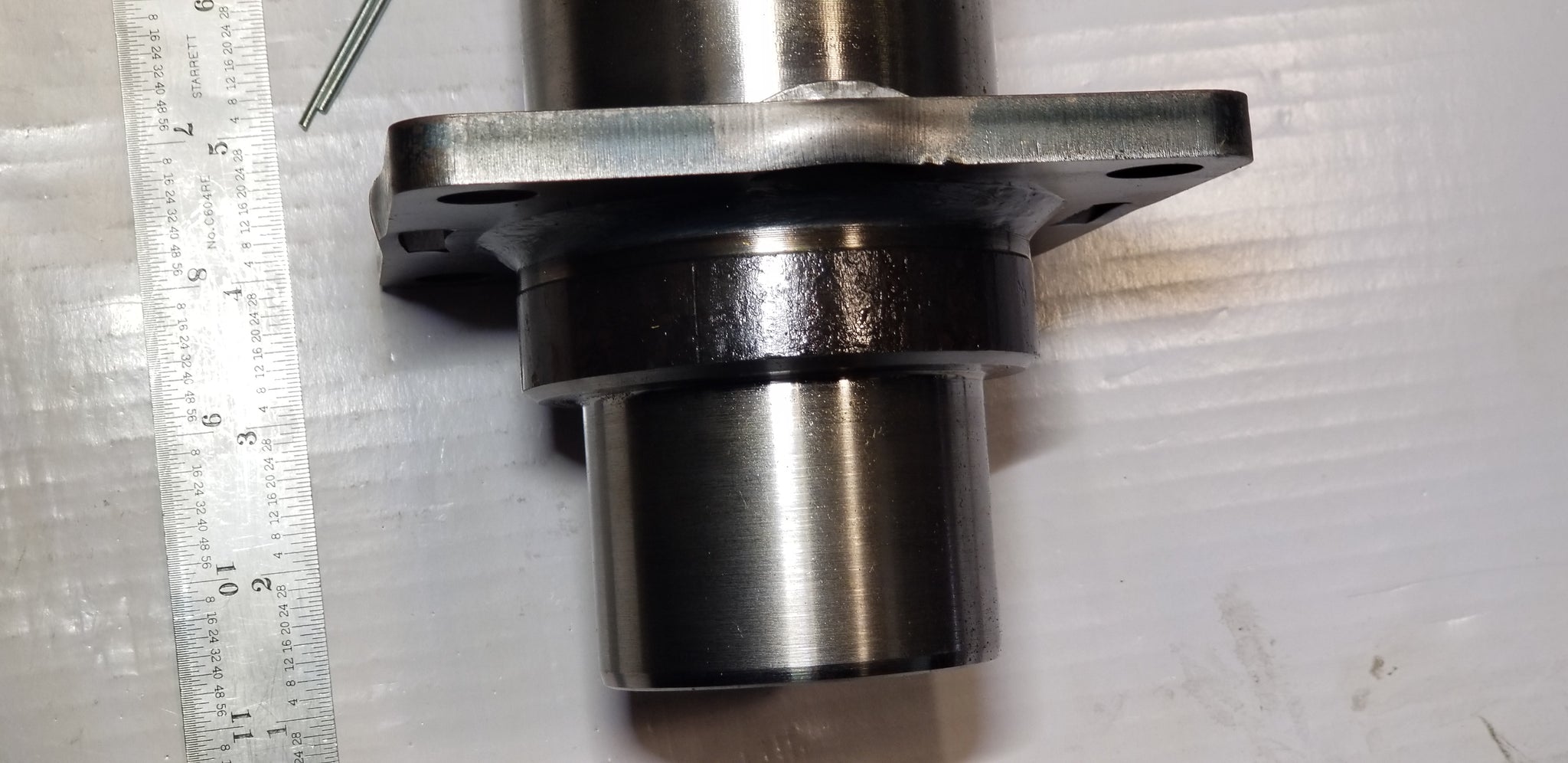

  • 4 hole square brake flange welded on back
  • Supports axles rated for up to 8,000 lb
  • Load Capacity: Up to 4,000 lb (per wheel)
Applications:

Commonly used in hub with oil bath applications

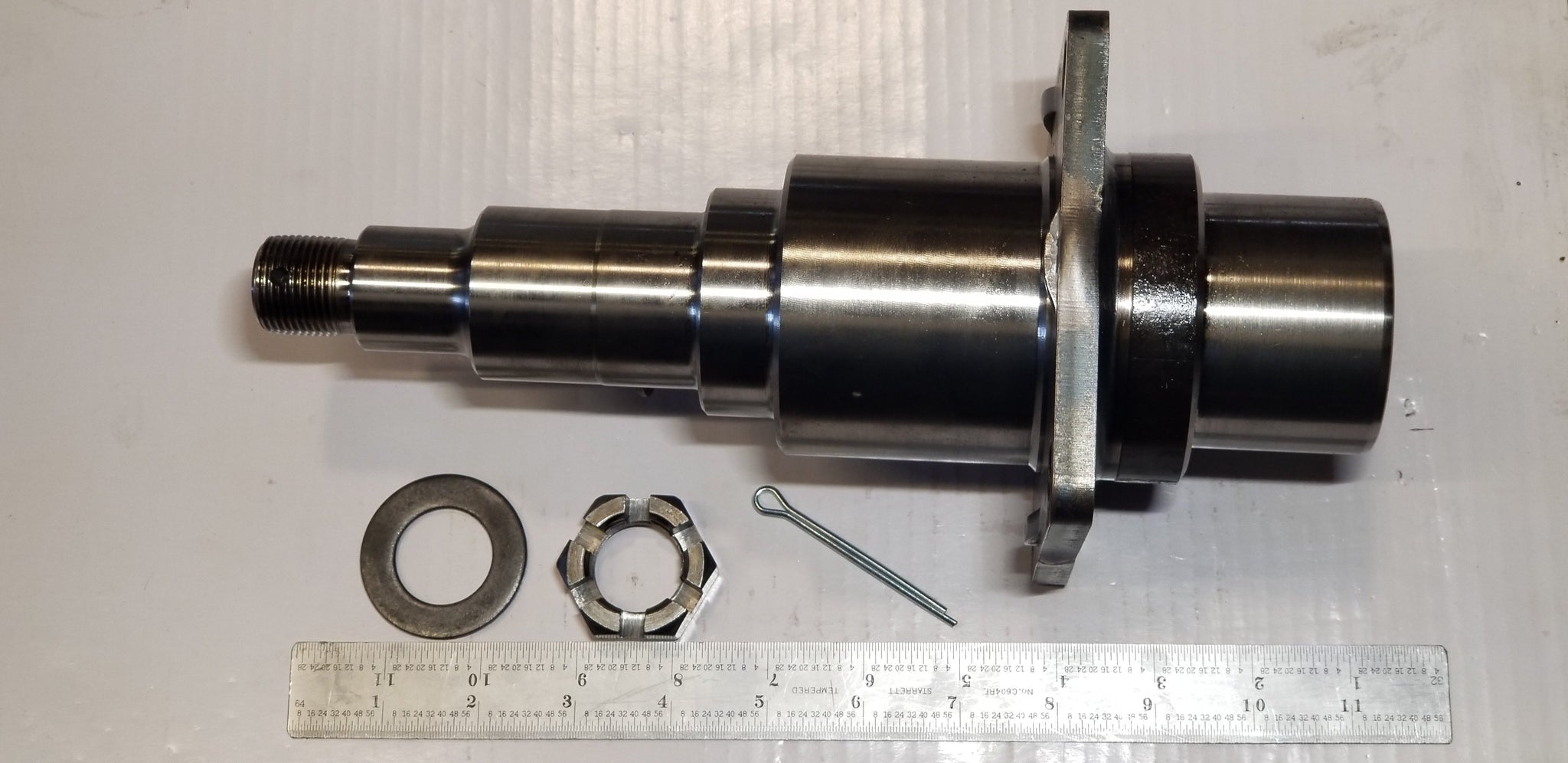

Includes:
  • Spindle (1)
  • Castle Nut (1)
  • Washer (1)
  • Cotter Pin (1)

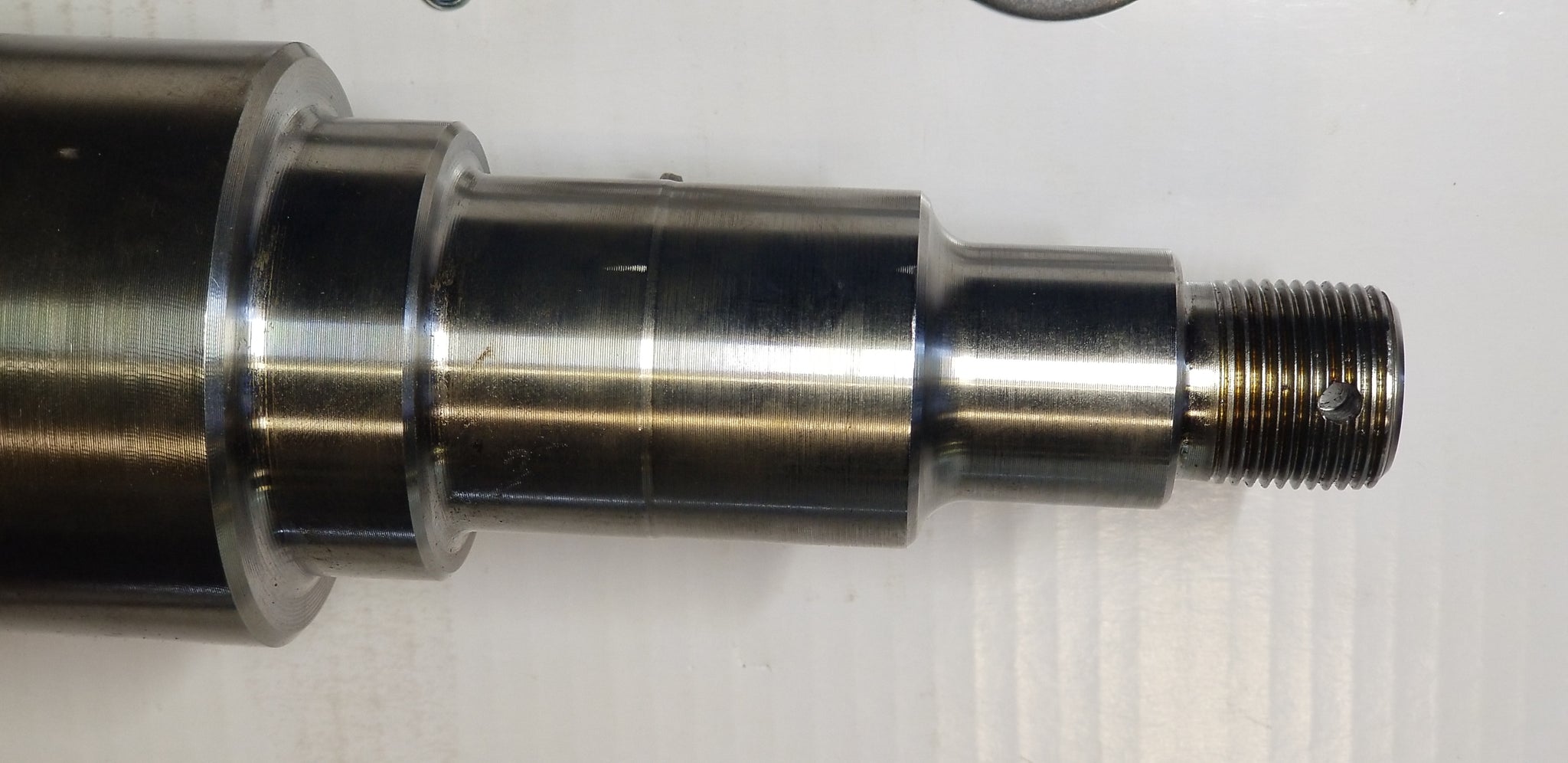

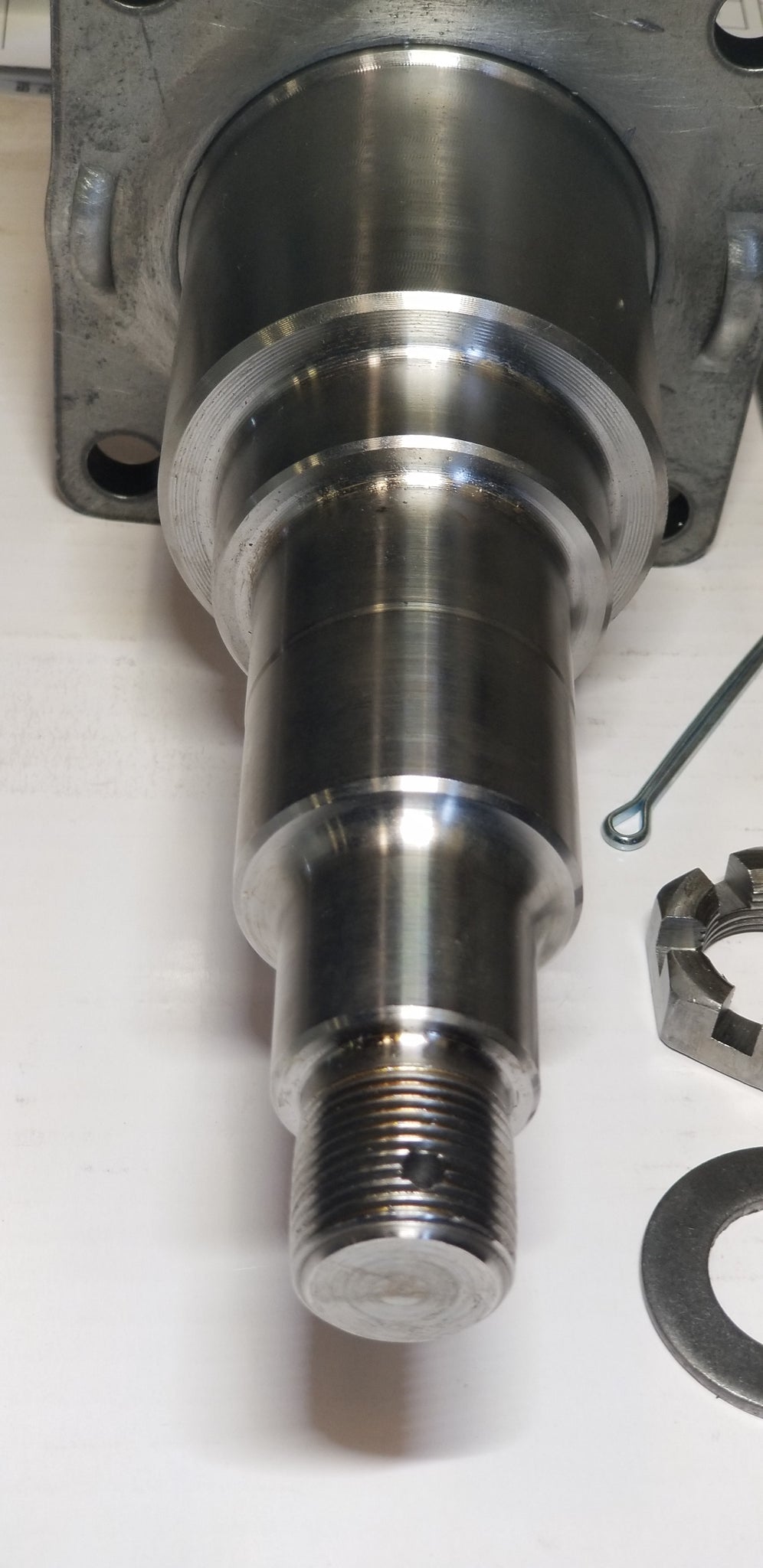

Spindle Measurements (see spindle size chart):
  • Bottom of Shank turned to 2.483 Diameter
  • (A)Shank Diameter: 3.25in
  • (B)Seal Diameter: 2.25 in
  • (C)Inner Bearing Diameter: 1.75 in
  • (D)Outer Bearing Diameter: 1.25 in
  • (E)Thread Diameter: 1.00 in
  • (F)Overall Length: 10.90 in
Spindle Weight: 14.87 lb

This part has been fully inspected and is being sold individually as is in brand-new condition.

Includes 1 Year Manufacturer Warranty

Made in the USA

*All Top Quality Machine Solution Spindles are engineered to exceed axle and trailer load capacity ensuring confidence in your purchase and safety. This spindle will not fit a dexter axle the brake flange is not retrofit.
